Washing Wastewater Treatment

Characteristics of
Washing Wastewater

Washing wastewater is the washing wastewater generated from bedding, work clothes, medical linen and functional surgical linen, and contains a small amount of domestic sewage; it mainly includes pre-washing sewage, main washing sewage, washing sewage and drying sewage.

It has the following characteristics: the washing sewage contains surfactants, carboxymethyl vitamins, oil stains, dust particles and various microorganisms. It has a turbid appearance with containing a large number of short fibers, bacteria, viruses and other potentially infectious bacteria as well.

MBR Process Flow Sheet

Process Flow Chart of Wastewater Treatment

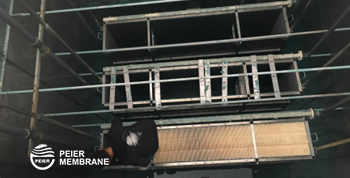

A Washing Company Project in Shanghai City

Case Study

Outline of the Facility:

A washing company in Shanghai of a total area of 1800 ㎡ with a 600 ³/ D treatment capacity, which was equipped with a total of 3 groups of PE150-200-2S membrane modules ,had been put into operation in 2018.

Performance:
The influent COD concentration of the biochemical tank is about 400mg/l, the suspended solids SS is about 250mg/l, the sludge concentration of the membrane tank is stable at about 8000mg/l, and the effluent COD  is less than 50mg/l. Cleaning and maintenance are carried out every 3 months with a stable membrane operation.

Some Case Studies Offered:
● Kairui Project (Hotel) of 2000m³/d in Shanghai(2018)
●

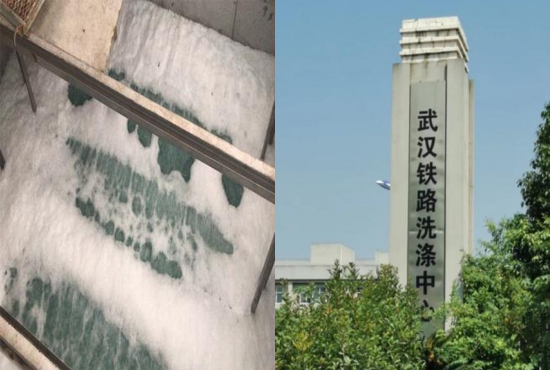

Wuhan Project of 600m3/d in Hubei Province(2021)
● Shicao Project(Hospital)of P.I 600m3/d,P.II 400m3/d in Shanghai(2017)
● Longyan Project (Hotel) of 200m3/d in Fujian Province(2019)
● Jieyi Project of 1000m3/d in Shanghai(2019)
● Xinchuangfu Project of 300m3/d in Xinjiang Autonomous Region (2019)
● Changzhou Project of 350m3/d in Jiangsu Province(2020)
● Baojiete Project of 800m3/d in Beijing(2021)

Laundry wastewater

In wastewater treatment, PEIER MBR is often a technology of choice over conventional treatment.
In most countries, statutory regulation for discharge and reuse of municipal wastewater are enforced.

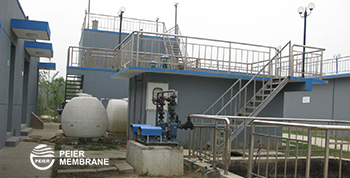

Shanghai Chenyue Technology Pty Ltd

Capacity: 300m³/day, laundry washing wastewater.

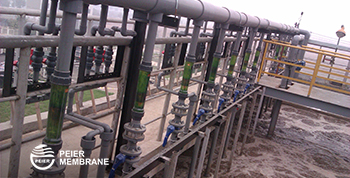

Shanghai Chenyue Technology Pty Ltd

Capacity: 300m³/day, laundry washing wastewater.

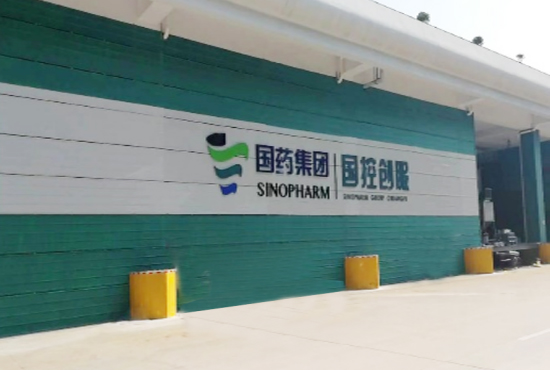

Shanghai  Sinopharm Company

Capacity: 600m³/day, medical laundry washing wastewater.

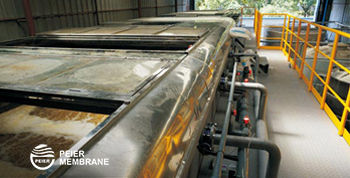

Wuxi Printing& Dyeing Wastewater

Capacity: 900m³/day.

Wuxi Resources Enterprise Project

Waste Disposal Station Project
